Towbar mountings will be specifically supplied to suit your vehicle so may differ from mounting points shown in the image dispalyed. All other parts as shown will be supplied. Round or flat trailer connection plug supplied as ordered.

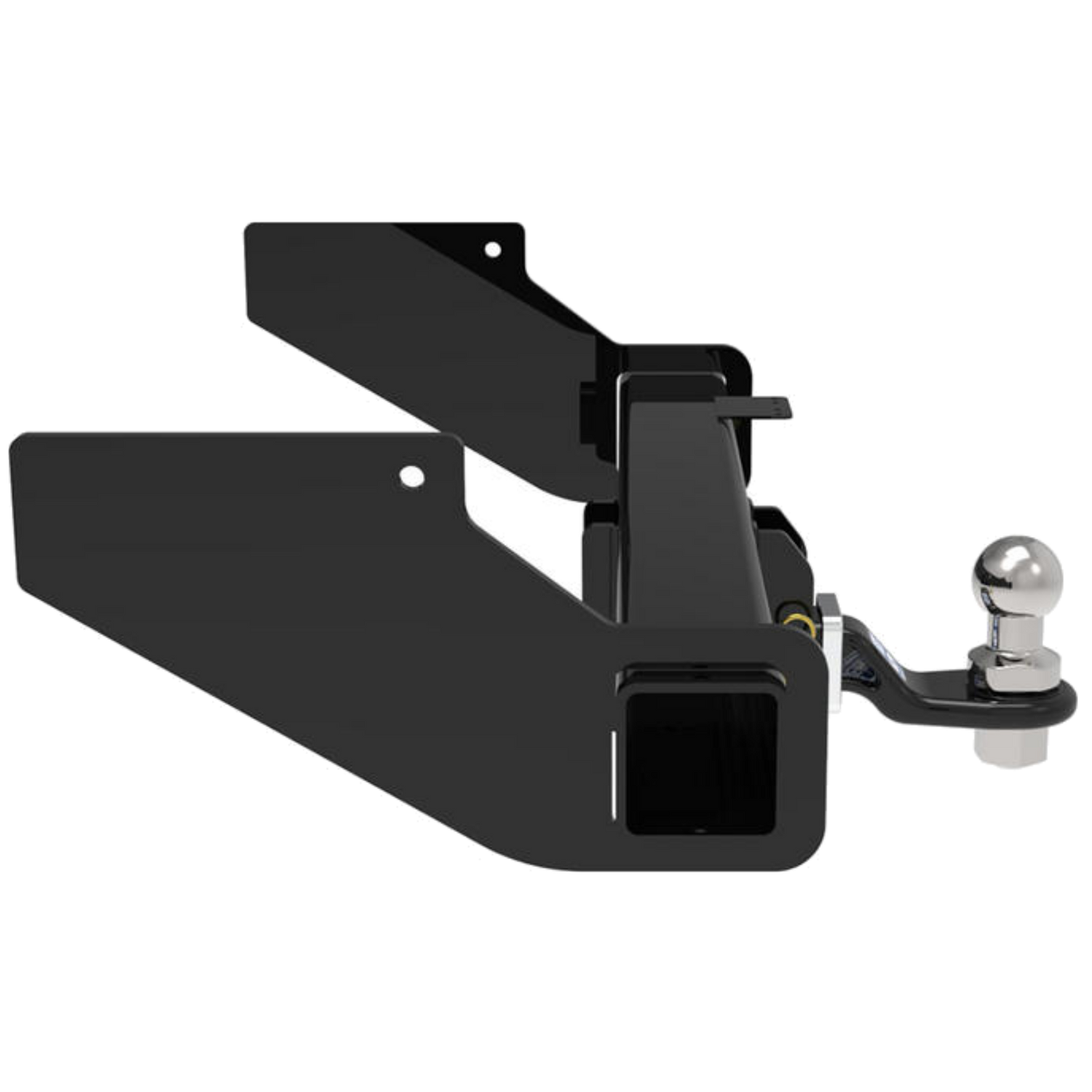

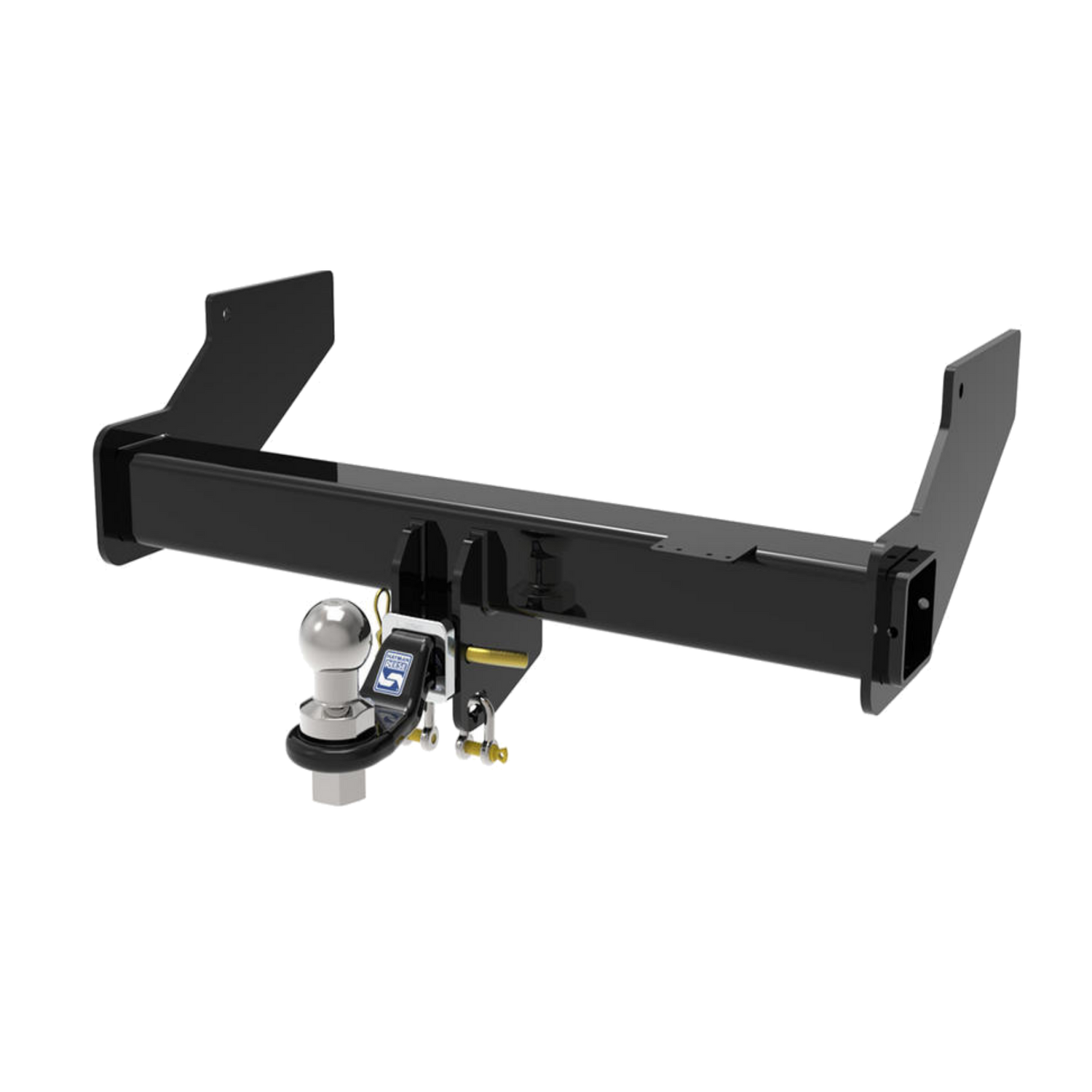

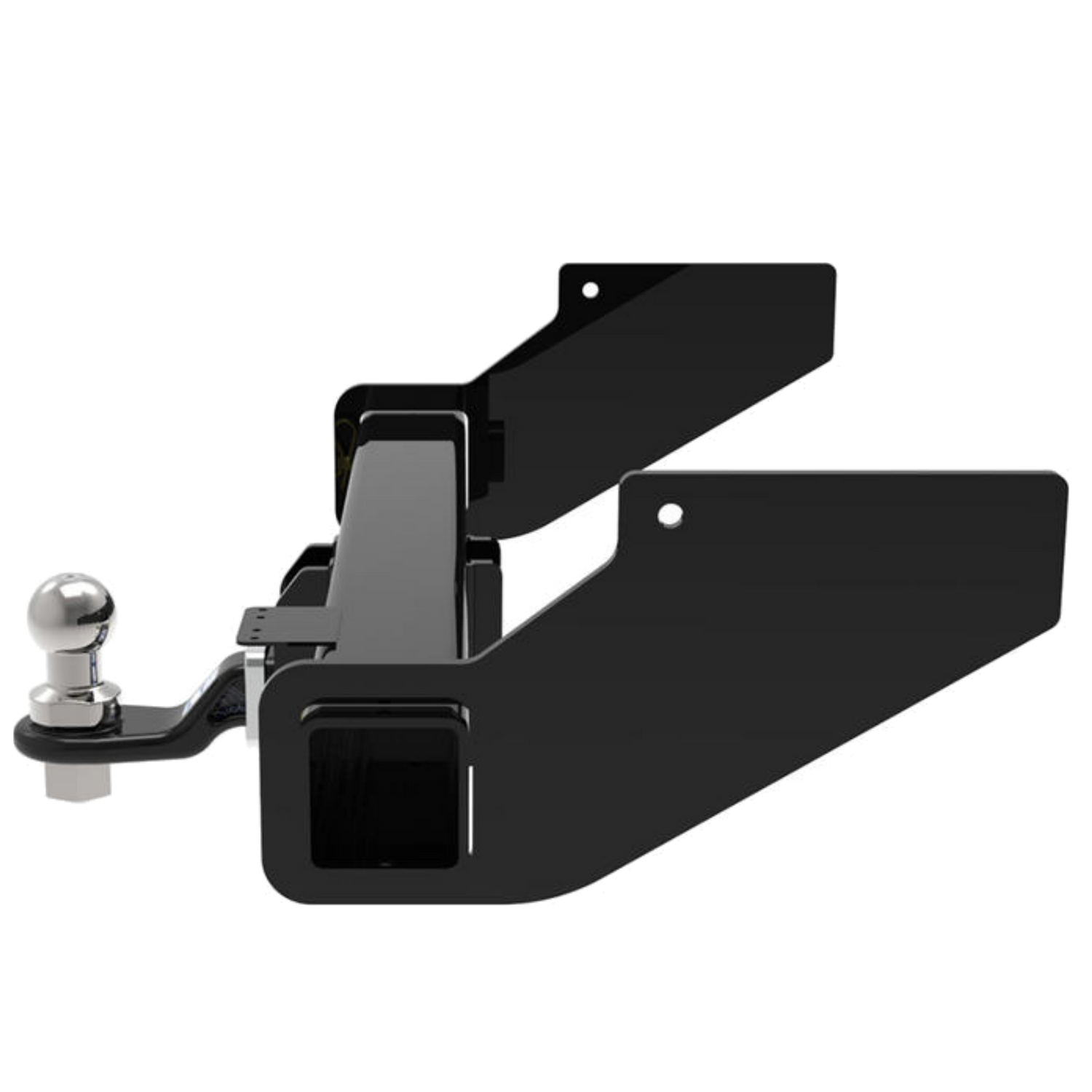

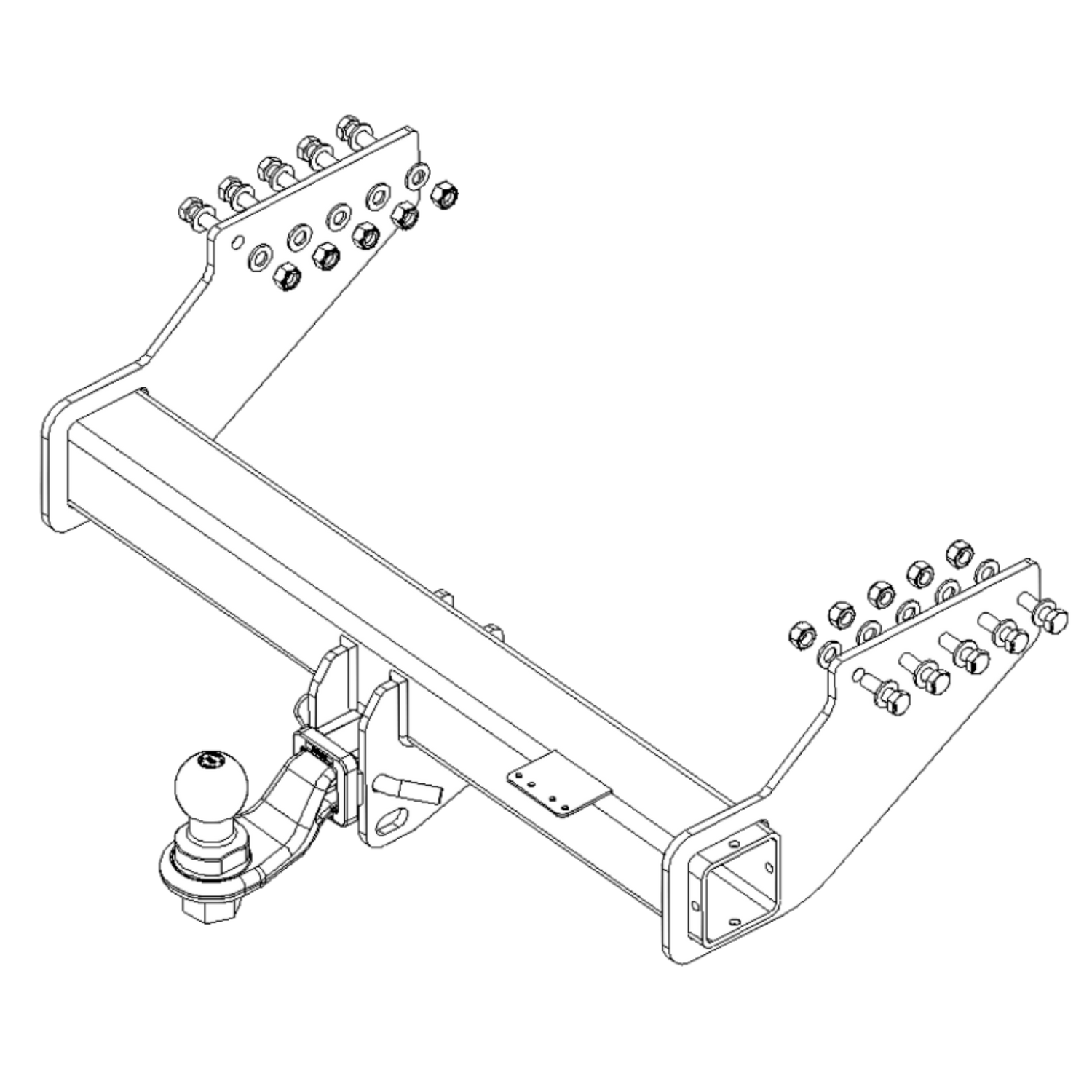

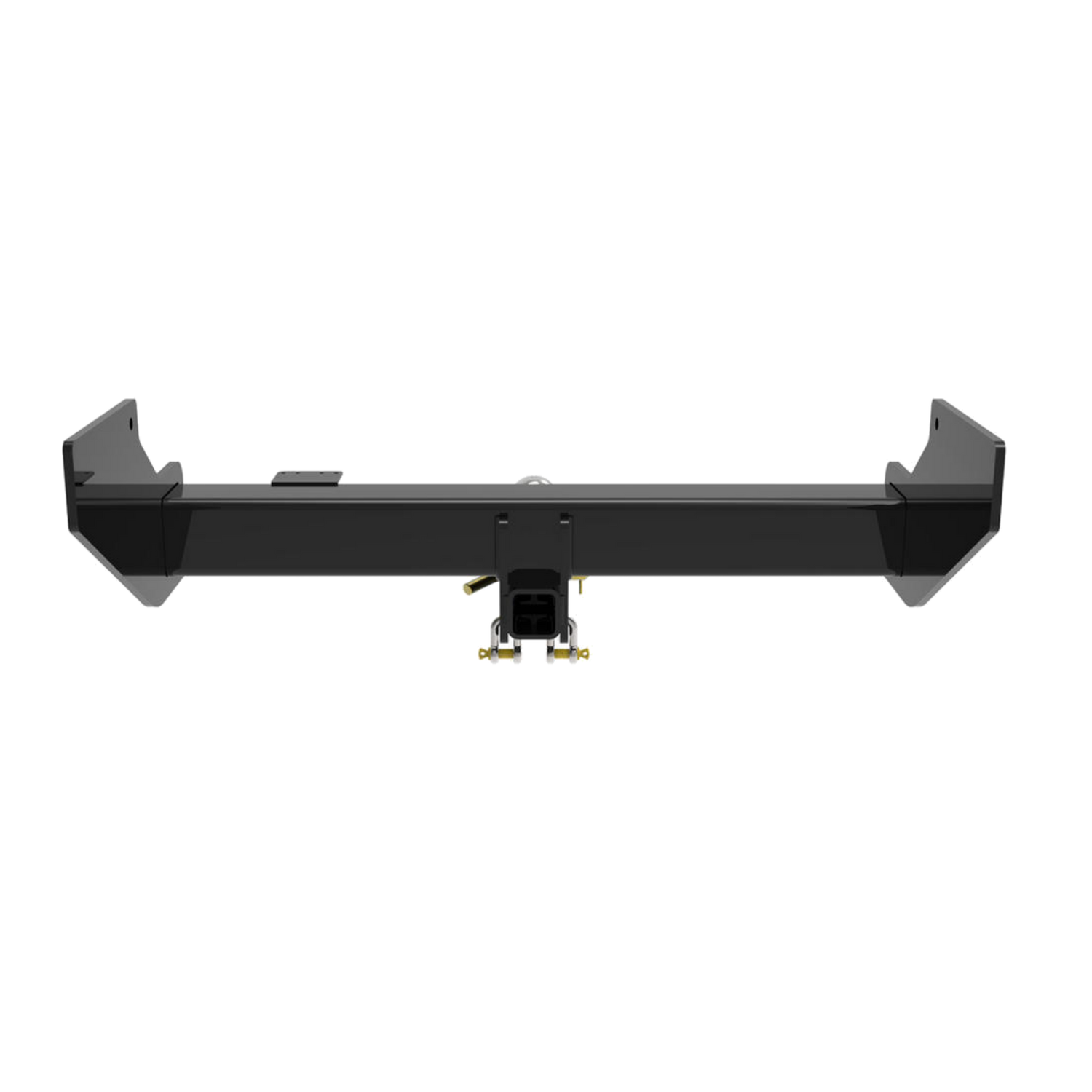

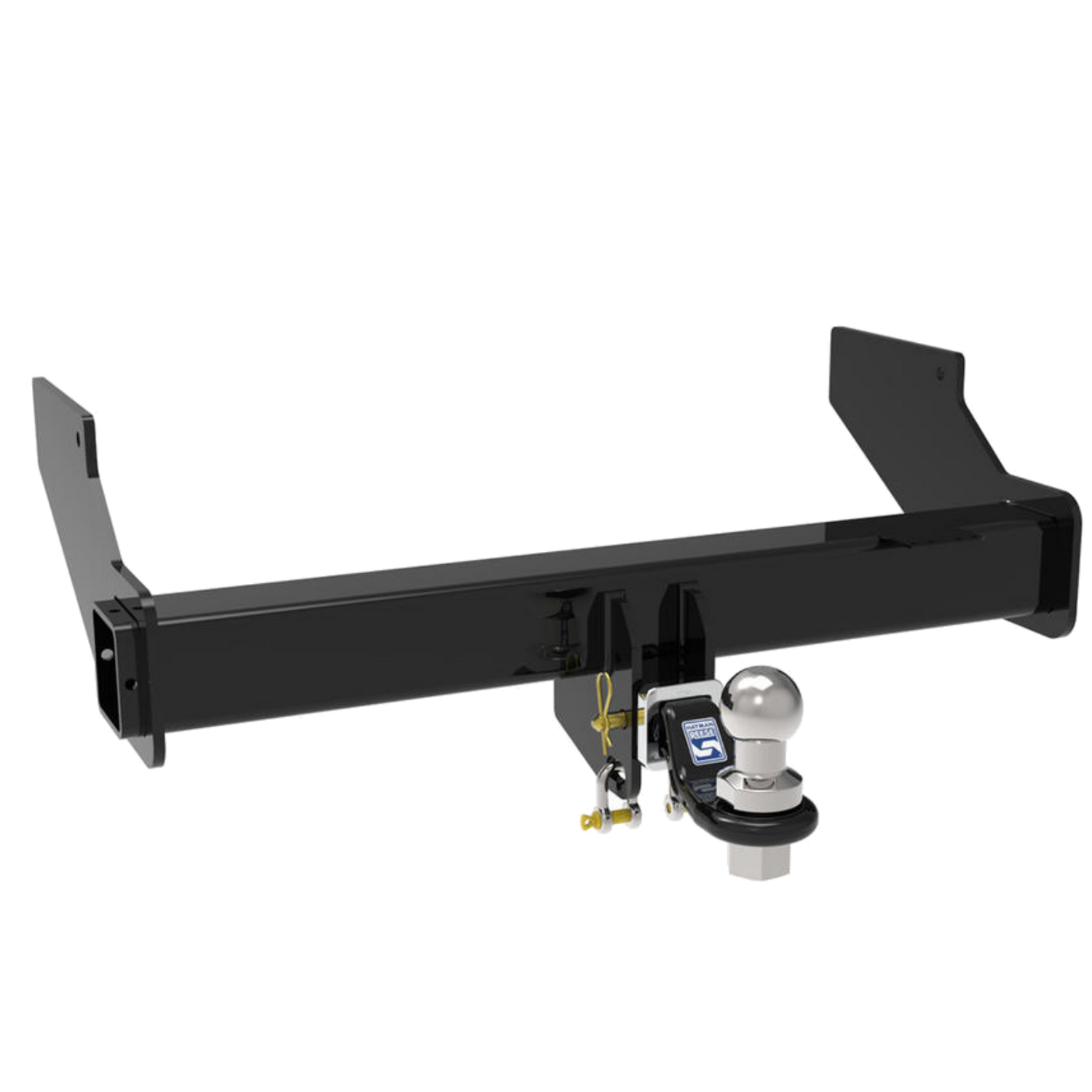

Truck Towbar Kit 4500 kg (Receiver under cross beam) - Towbar Kit

Description
Fitting Instructions

Capacity:	4500 kg	Ballmount:	21373	Type:	Heavy Duty
Ball Weight:	450 kg	Bumper Cut:	No	Fitting Time:	5 hrs

NOTE: THIS KIT REQUIRES DRILLING AND WELDING TO INSTALL

Vehicles in excess of 4,500 kg GVM will require P1 certification as part of installation

ADR approved heavy duty plus towbar kit includes

Suits maximum chassis width of 975mm
Slide in 50mm x 50mm type tongue to suit 70mm towball
Chrome 70mm 4500kg rated Towball
Fitting instructions
All nuts, bolts and fitting hardware
Hayman Reese lifetime Warranty

Built for hard-working light trucks, the Hayman Reese 03545R is a new generation welded Universal Truck Bar rated to 4500kg. It’s designed to make installation and compliancing simpler by avoiding chassis lower-flange drilling and helping installers align to existing chassis holes. Straight side arms mount to the side of the chassis, and the side plates are supplied with one pre-drilled hole for adaptable fit-up. You also get improved safety chain access thanks to the integrated dropper/chain connection point.

Free phone & email installation support if you needed.

PLEASE NOTE: All towbar ratings listed on this site are maximum weight capacity for supplied towbar kit. Engine, gearbox or chassis types will determine towing capacity for your vehicle. Please check your vehicle log book (towing section) or manufacturer for confirmation of your vehicle's towing limits.

Download PDF

Truck Towbar Kit 4500 kg (Receiver under cross beam) - Towbar Kit

Name: Truck Towbar Kit 4500 kg (Receiver under cross beam) - Towbar Kit
Brand: Hayman Reese Towbars
SKU: 03545R
Price: 1036.0 AUD
Availability: InStock
