Home Modular Class 5 Fuso Canter Cab Chassis Hbp M16 Low Mount 01/2019 - On
Towbar mountings will be specifically supplied to suit your vehicle so may differ from mounting points shown in the image dispalyed. All other parts as shown will be supplied. Round or flat trailer connection plug supplied as ordered.

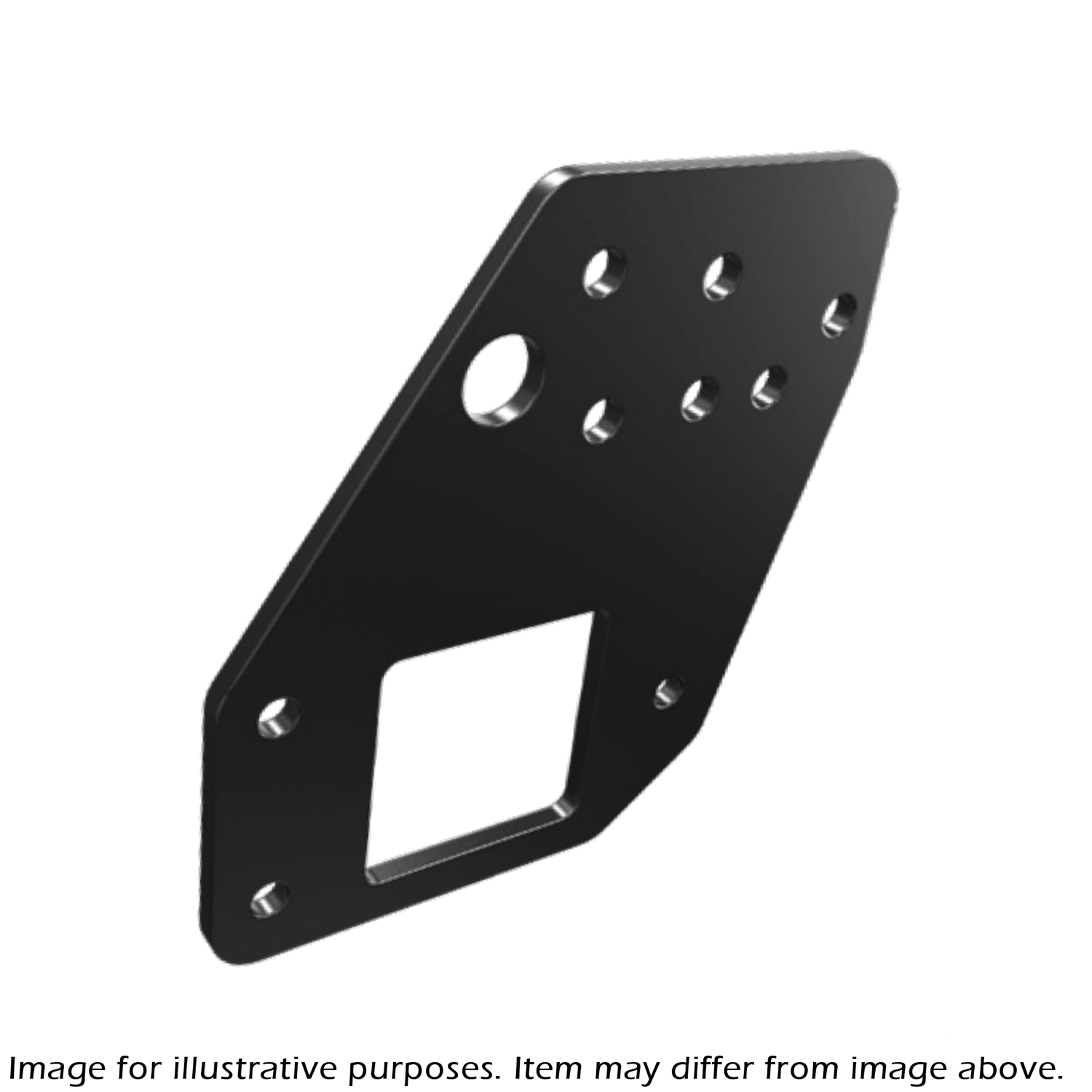

Side Arm for Modular Class 5 Fuso Canter Cab Chassis Hbp M16 Low Mount 01/2019 - On
  1. Side Arm for Modular Class 5 Fuso Canter Cab Chassis Hbp M16 Low Mount 01/2019 - On
Capacity: Up to 4500 kg Ballmount: TBA Type: Modular Class 5
Ball Weight: Up to 450 kg Bumper Cut: No Fitting Time: 2 hrs

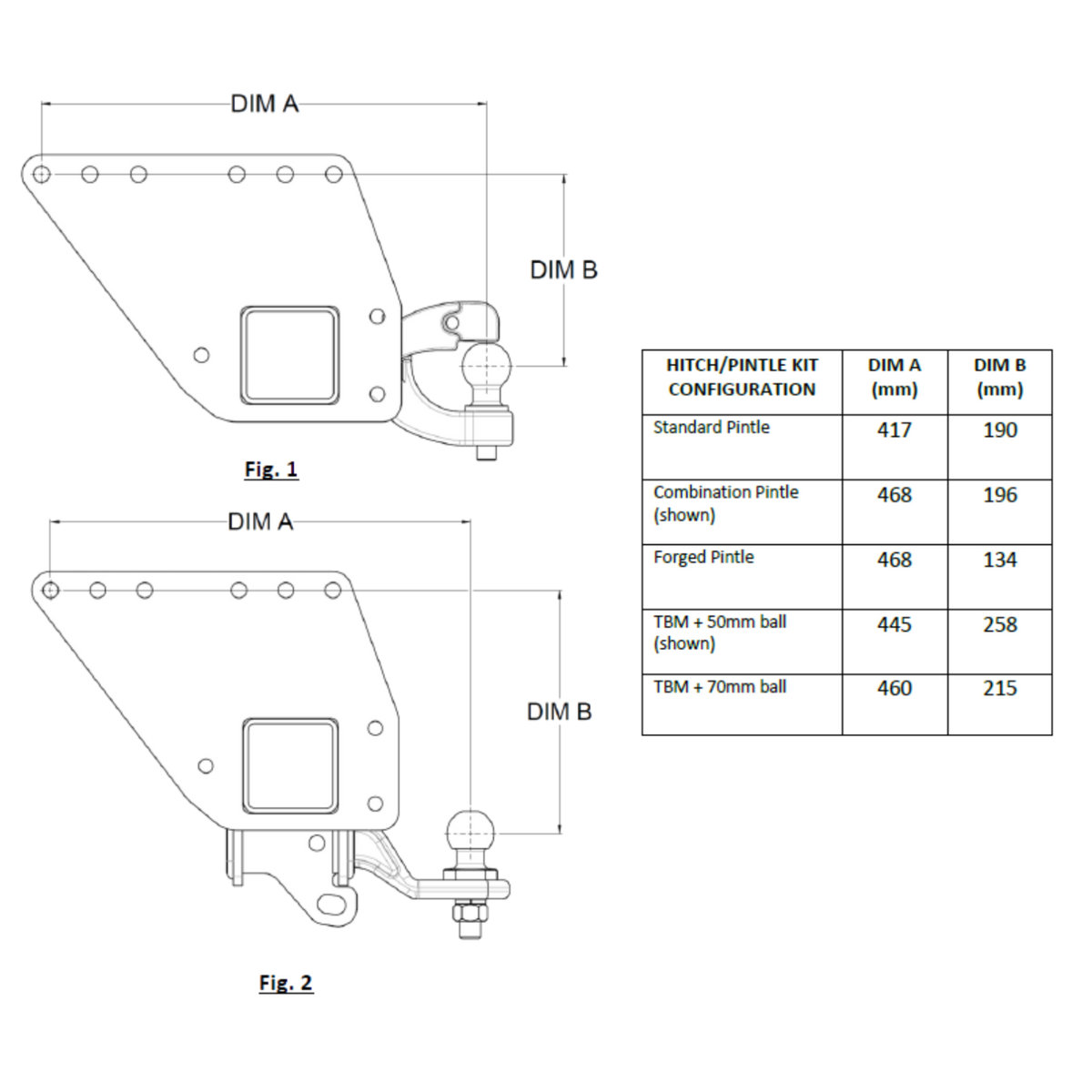

MODULAR SERIES This is the Sidearm kit only. A Cross Tube and Hitch Kit are required to complete installation. Check vehicle suitability against side views and dimensions in Fitting Instruction to ensure ball height meets requirements. For Tipper applications ALWAYS warn users that hitch MAY contact tail gate during tipping. Please leave the Fitting Instruction in the vehicle after installation.

The new Modular Class 5 Towbars are a fully bolted, custom fit bar, requiring no welding. Choosing your towbar is now as easy as A, B, C, allowing you to pick and choose from a variety of sidearms, cross tubes, and hitch kits to suit your customer’s truck and towing needs.

ADR approved heavy duty plus towbar kit includes
  • Powder Coated
  • Fitting instructions
  • All nuts, bolts and fitting hardware
  • Hayman Reese lifetime Warranty
Free phone & email installation support if you needed.

NOTE: THIS KIT REQUIRES DRILLING TO INSTALL



Vehicles in excess of 4,500 kg GVM will require P1 certification as part of installation


PLEASE NOTE: All towbar ratings listed on this site are maximum weight capacity for supplied towbar kit. Engine, gearbox or chassis types will determine towing capacity for your vehicle. Please check your vehicle log book (towing section) or manufacturer for confirmation of your vehicle's towing limits.

Modular Class 5 Fuso Canter Cab Chassis Hbp M16 Low Mount 01/2019 - On

Modular Class 5
Part Number: MCL5A-4005

$434.00

Shop Pay American Express
  • Meets Australian Design Rules
  • Limited Lifetime Warranty
  • Free Phone & Email Support
Shipping Estimator
Estimate shipping rates.
Shipping calculated at checkout.
Capacity: Up to 4500 kg Ballmount: TBA Type: Modular Class 5
Ball Weight: Up to 450 kg Bumper Cut: No Fitting Time: 2 hrs

MODULAR SERIES This is the Sidearm kit only. A Cross Tube and Hitch Kit are required to complete installation. Check vehicle suitability against side views and dimensions in Fitting Instruction to ensure ball height meets requirements. For Tipper applications ALWAYS warn users that hitch MAY contact tail gate during tipping. Please leave the Fitting Instruction in the vehicle after installation.

The new Modular Class 5 Towbars are a fully bolted, custom fit bar, requiring no welding. Choosing your towbar is now as easy as A, B, C, allowing you to pick and choose from a variety of sidearms, cross tubes, and hitch kits to suit your customer’s truck and towing needs.

ADR approved heavy duty plus towbar kit includes
  • Powder Coated
  • Fitting instructions
  • All nuts, bolts and fitting hardware
  • Hayman Reese lifetime Warranty
Free phone & email installation support if you needed.

NOTE: THIS KIT REQUIRES DRILLING TO INSTALL



Vehicles in excess of 4,500 kg GVM will require P1 certification as part of installation


PLEASE NOTE: All towbar ratings listed on this site are maximum weight capacity for supplied towbar kit. Engine, gearbox or chassis types will determine towing capacity for your vehicle. Please check your vehicle log book (towing section) or manufacturer for confirmation of your vehicle's towing limits.
