Vehicle Make: Ford
Vehicle Model: Transit

Vehicle Type: Cab Chassis
Vehicle Year: 04/2014 - 05/2016

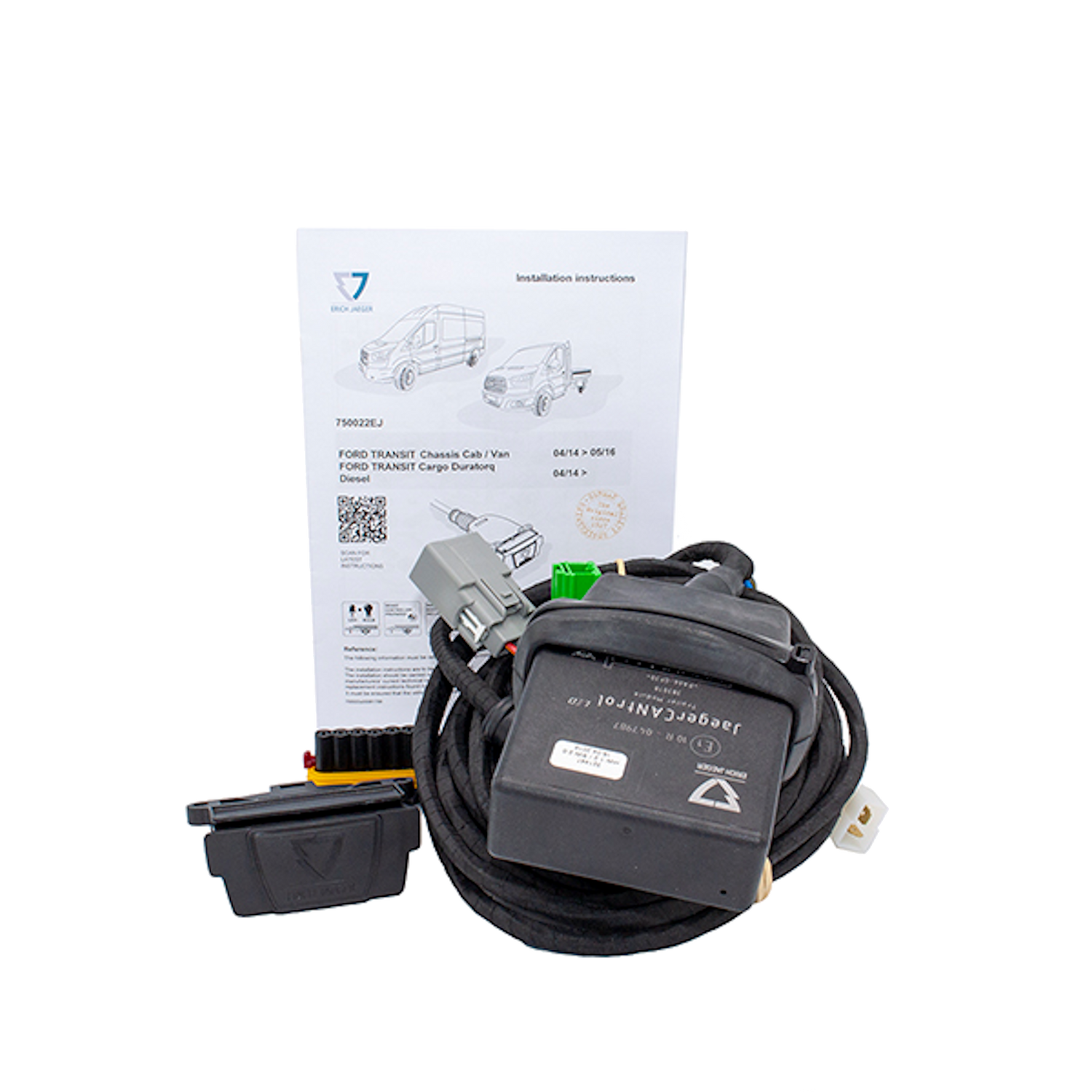

Direct Fit Wiring Harness Ford Transit & Transit Custom 750022EJ

Description
Fitting Instructions

The harness supplied will be a direct plug-in vehicle specific integrated Can-bus design and may appear different to the above image. Coding will not be required during installation. Harness supplied will include your chosen trailer connection plug type.

Vehicle Model Details

Make and Model

Ford Transit Cab Chassis (04/2014 - 05/2016)

Ford Transit Custom Van (04/2014 - 05/2016)

Wiring Details

Pin Type

7 Pin

Socket Type

Flat Weatherlock

Fitting Time

30 to 60 Minutes

Brake Controller Connection

Yes

CAN-bus Connection

Front

Power Connection

Front

Controller Details

Module Diagnostic Function

Yes

PDC Deactivation

Manual

Bulb-Out Detection

Yes

Trailer Detection

Yes

CAN-bus

Yes

CAN-bus Coding

Additional Notes

If the CAN connector is green, then this is the correct kit to fit. If the CAN connector is black then you most likely need to fit kit 750074EJ. The power pin in the 2 pin power connector under the seat has been moved from pin position 2 to 2 compared to 750074EJ. If you therefore use the wrong harness on the transit (750074EJ instead of 750022EJ) you might have no power to the module.
